西门子DR报错误Error603

型号: AXIOM Aristos VX

软件版本: syngo VD31A SL03P08

故障现象

无法曝光，报错误代码Error:603 from Apld:80 Conf.error. If er-occurs, call service

排查步骤

按Tab Del + 然后再按开始键

在Programs文件夹右键鼠标选择open

在Other Places选择My Computer进入我的电脑

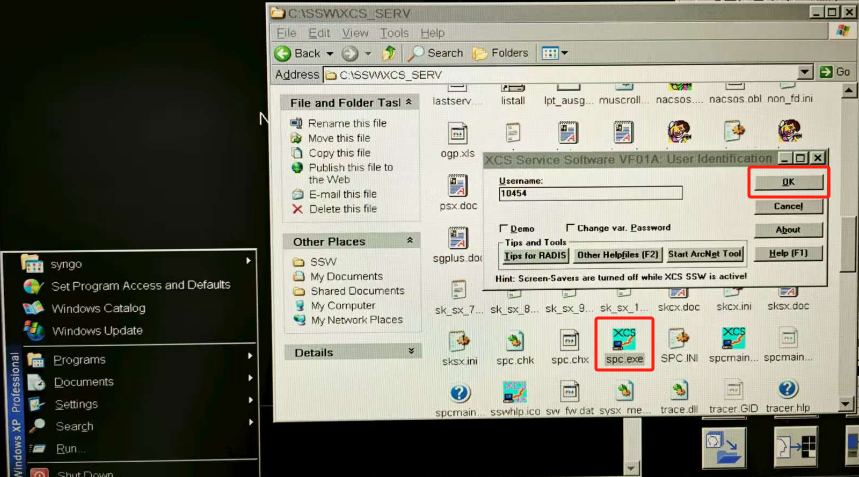

打开C:\SSW\XCS_SERV\spc.exe查看系统日志，点击ok

选择Diagnostic>Error Log

点击Get from unit

双击Number条目选择对应 R0603 PSX:no feedback from capacitor load

点击More info查看603错误补充说明

Meaning:

Charging contactor (LS) not OK

Description:

On initialization: D100 switches the charging contactor closed. There must be an acknowledgment after 5 s, otherwise Error 603 is output.

Possible causes and action:

Actuation of “charging” relay D160.K4 defective, i.e. no low signal (0V) LSR at D160.X5.5

D100 defective

If the above named signal is OK and K4 does not switch, relay K4 on D160defective

replace D160

Check cable from D100.X5 to D160.X5

Check actuation of the LS contactor A2, A1

24V~ (± 10%) at 50 Hz

29V~ (± 10%) at 60 Hz

Check contactor acknowledgment LSU at D100.X5.27 or D160.X3.9 24V~ (± 15%).

Contactor sticks or jams.

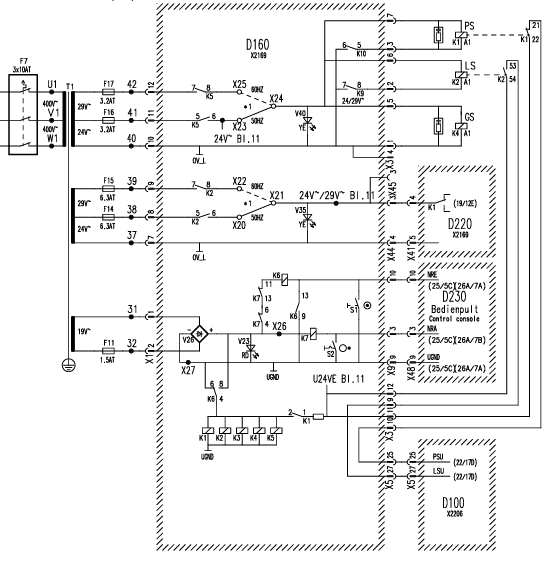

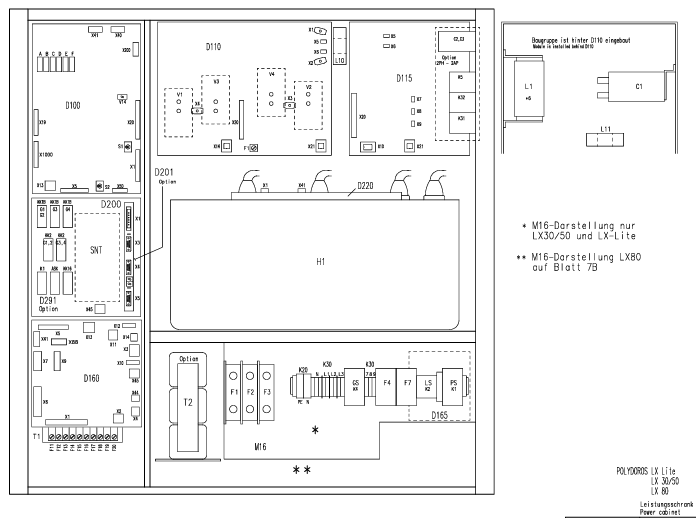

由此可知D100产生闭合给用于充电的接触器LS，需要在5s内收到确认信号，如果没有就会报603错误，可以把故障缩小到D100>X5>D160>K4>LS

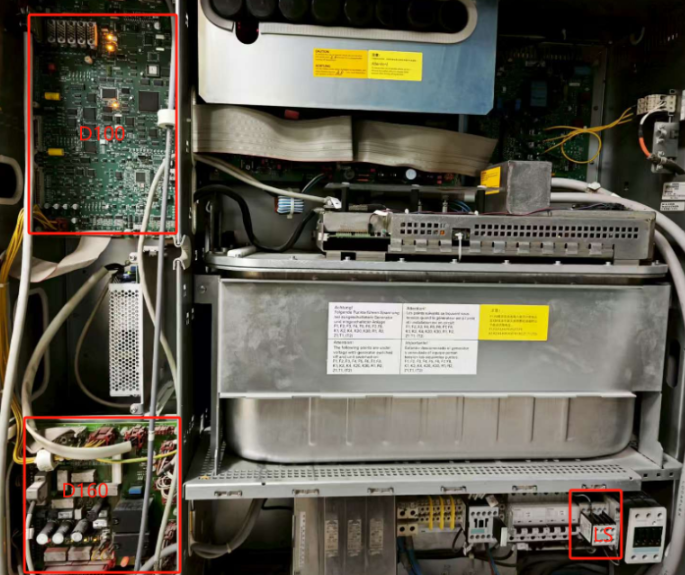

检查D100和D160状态指示灯正常

测量D100到D160的X5排线通道正常

检查D160的K4继电器未发现明显异常



测量LS交流接触器，测量存在异常，维修处理后可曝光

曝光偶发报错误Error 78 from Apid：240 Please wait for imaging system to get ready，检查曝光手闸，发现异常，清洁触点，曝光正常
